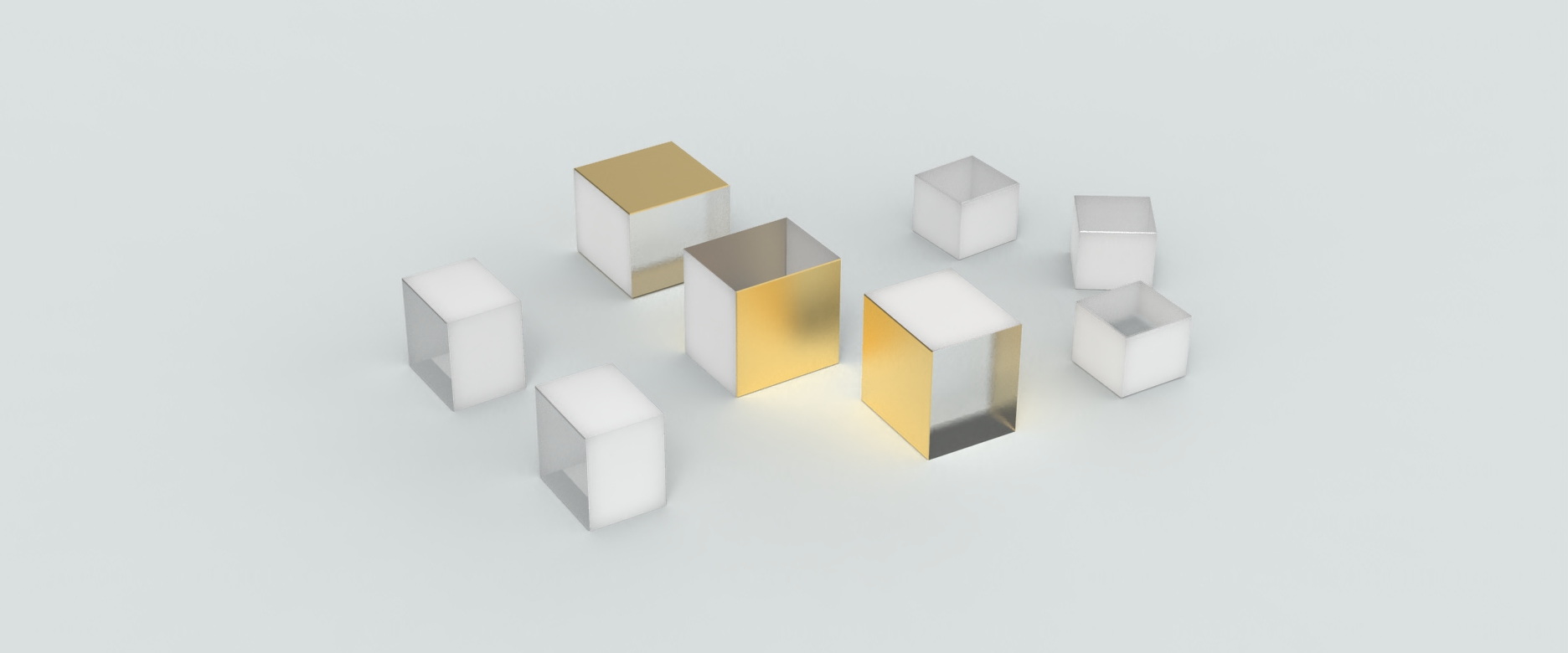

RTP

RTP is an isomorphic crystal to KTP, sharing a similar crystal structure but with distinct properties. The damage threshold is about 1.8 times that of KTP.
RTP is a versatile crystal material with outstanding electrical and optical properties. Its high damage threshold, wide transmission range and environmental stability make it an ideal choice for high-performance electro-optic devices like Q-switch, electro-optic shutter, phase modulator, etc.

PRODUCT FEATURE & SPECIFICATIONS

PRODUCT FEATURE

Reliable homogeneity

High laser damage threshold

Non-hygroscopic

Low absorption losses

No acoustic ringing

SPECIFICATIONS
Aperture	2×2mm²~15×15mm²
Extinction Ratio	> 23dB
Transmission	> 98.5% @1064nm
Angular Adjustment Tolerance	1.5 degree
Half Wave Voltage	15×15×25(10+10)mm³ : 6000V 10×10×25(10+10)mm³ : 4000V 8×8×25(10+10)mm³ : 3200V 6×6×25(10+10)mm³: 2400V 4×4×25(10+10)mm³: 1600V 3×3×25(10+10)mm³ : 1000V
Coating	R < 0.2% @1064nm
Damage Threshold	> 600 MW/cm²@1064nm,10ns,10Hz
